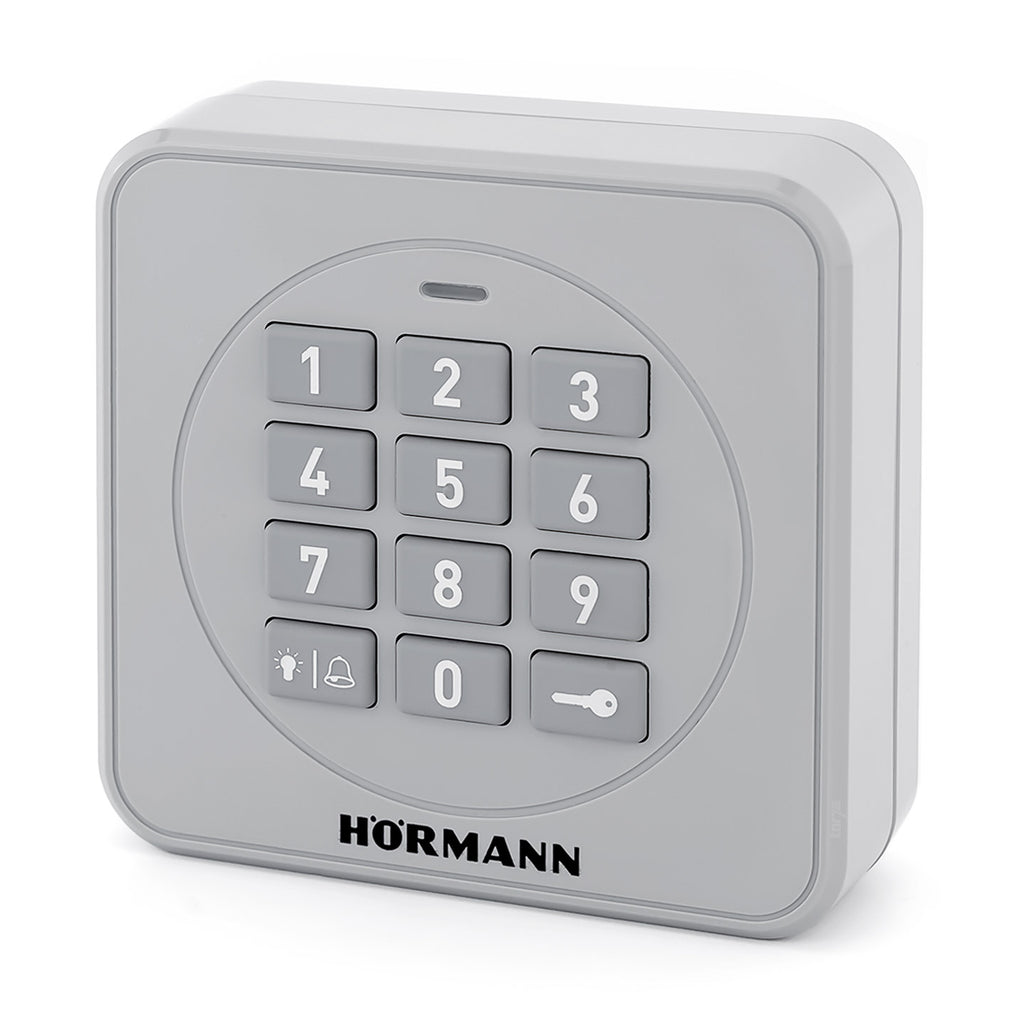

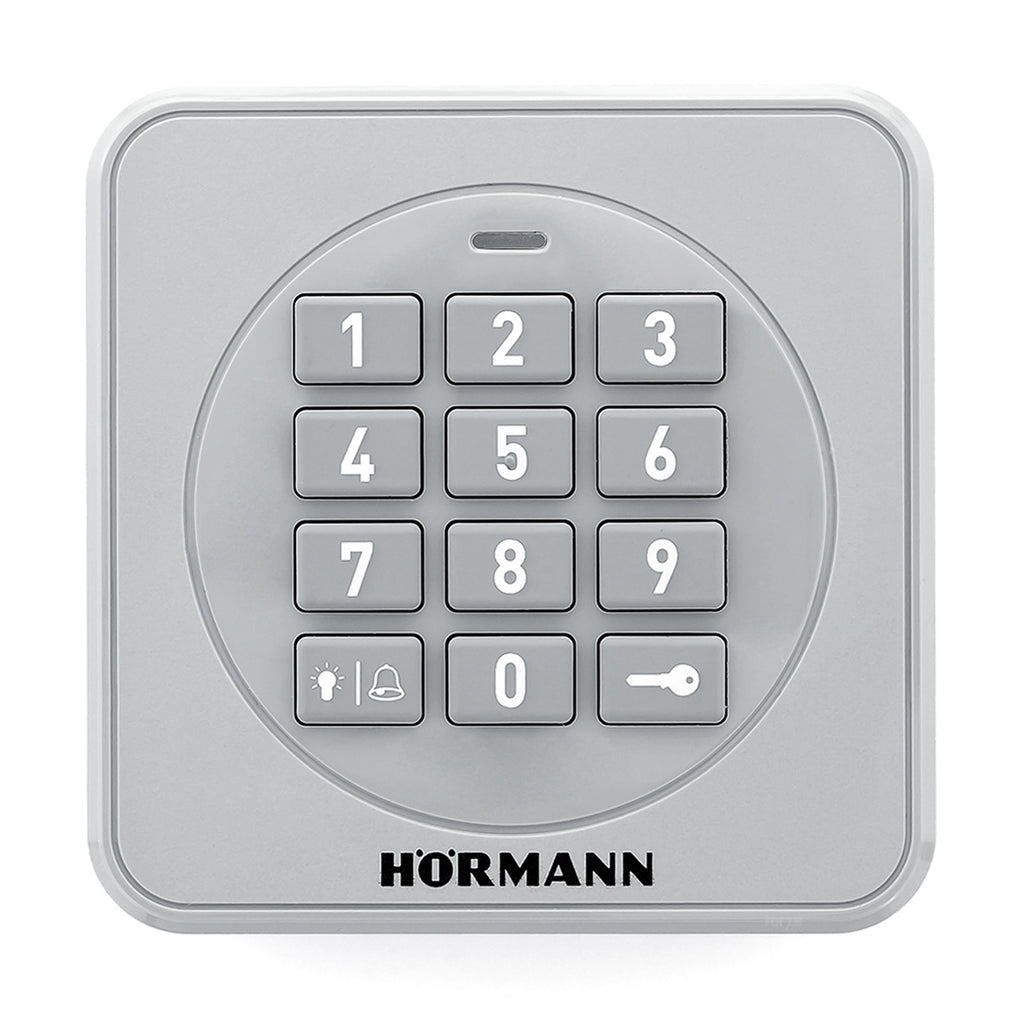

Hörmann FCT3-1 BS-868 Radio Code Switch

Hörmann FCT3-1 BS-868 Radio Code Switch – Secure Keyless Access

Control your garage or entrance gate safely and conveniently without a key or remote with the Hörmann FCT3-1 BS-868 Radio Code Switch. This modern three-channel radio code keypad with BiSecur technology provides maximum security and flexibility for up to three drives or functions via individual access codes.

BiSecur 868 MHz Technology

• Maximum Security – Encrypted 868 MHz radio transmission prevents unauthorized access
• Backward Compatible – Works with older Hörmann receivers with fixed 868 MHz code
• Interference-Free Operation – Reliable signal transmission without interference
• Long Range – Stable connection up to 50 m in open field
• Future-Proof – Compatible with all modern Hörmann BiSecur systems

Main Features

• Three Channels – Control up to three different drives or functions
• Wireless – No wiring required, battery-operated
• Individual Codes – Up to 16 user codes programmable
• Secure Access – 4-digit PIN codes for reliable protection
• Illuminated Keys – Visible and easy to use in the dark
• Weather-Resistant – Suitable for outdoor mounting (IP54)
• Battery Operated – 2x AA batteries included
• Successor to FCT 3 BS – Improved version with additional features

Three-Channel Functionality

• Channel 1: e.g., garage door
• Channel 2: e.g., entrance gate
• Channel 3: e.g., lighting or second garage door
• Each channel programmable independently
• Different codes possible per channel for added security

User Codes & Security

• Up to 16 different user codes programmable
• 4-digit PIN codes (0000–9999)
• Each code can grant access to one or multiple channels
• Easy to add or remove codes
• Master code for user code management

Compatibility

• Hörmann BiSecur Drives (868-BS): SupraMatic 4, ProMatic 4, RotaMatic, LineaMatic, VersaMatic, PortaMatic
• Older Hörmann receivers with fixed 868 MHz code
• External receivers: HET-868, HEI-868
• Backward compatible for maximum flexibility

Technical Specifications

• Type: Wireless radio code switch
• Frequency: 868 MHz BiSecur
• Channels: 3 independent channels
• User codes: Up to 16 programmable
• Code length: 4 digits (0000–9999)
• Range: Up to 50 m (open field)
• Power supply: 2x AA batteries (included)
• Battery life: Approx. 2 years under normal use
• Key illumination: Auto-on upon touch
• Protection class: IP54
• Color: Gray/Anthracite
• Material: High-quality, weather-resistant plastic
• Dimensions: Compact for discreet mounting
• Operating temperature: -20°C to +55°C

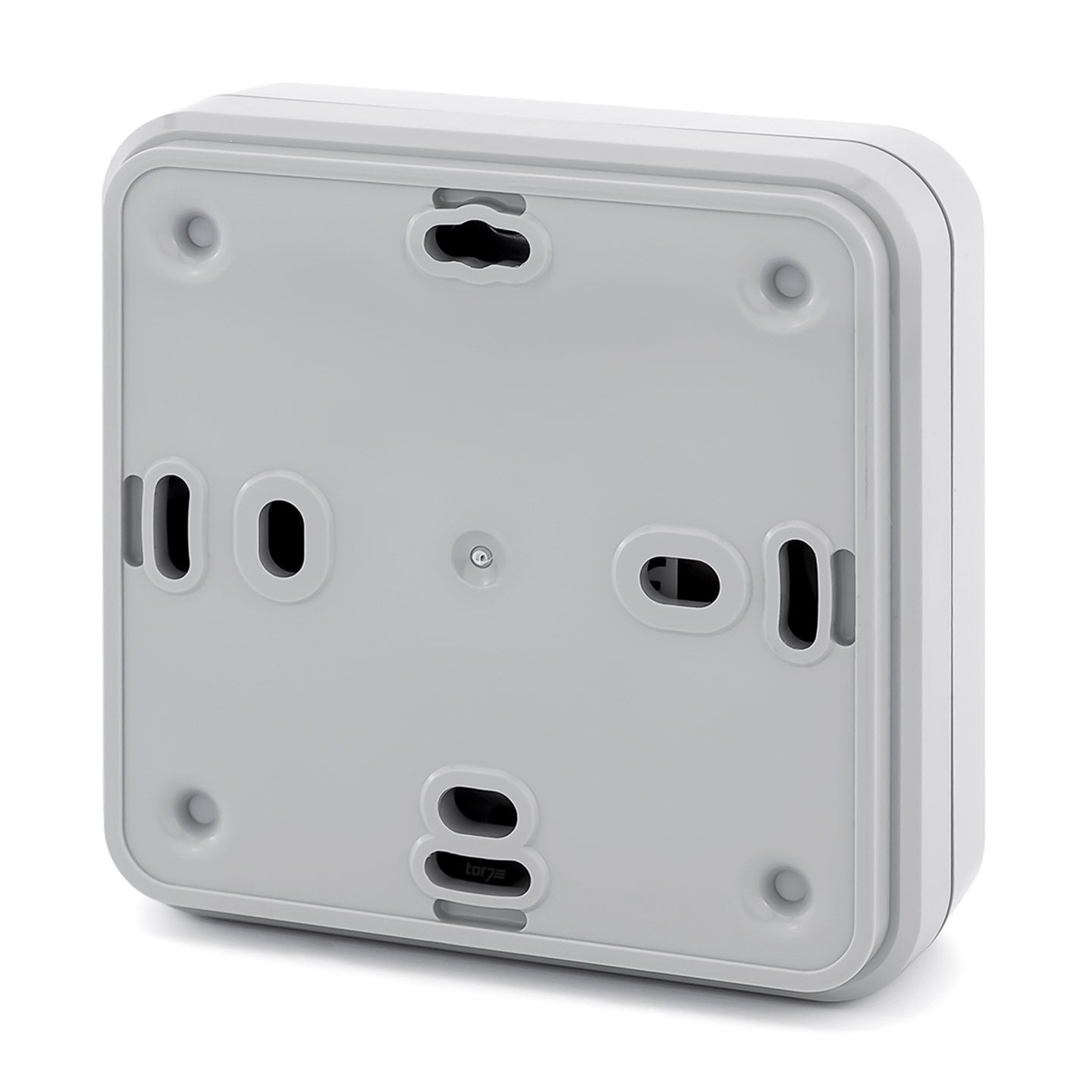

• Mounting: Wall-mounted with screws or double-sided tape
• Article number: 4510375
• EAN: 4510375

Benefits of the Radio Code Switch

• No keys needed – Access via personal code
• No remote required
• Multiple users – Each with their own code
• Temporary codes easy to add/remove
• Extra security – Codes cannot be copied like keys
• Always accessible – Fixed point at the entrance
• Weatherproof – Reliable in all conditions

Ideal Applications

• Garage doors for family members without a remote
• Entrance gates for visitors and delivery personnel
• Business premises with multiple users
• Holiday homes with changing guests
• Rental properties with temporary access codes
• Sports clubs or public facilities
• Combination with existing remotes for convenience

Installation & Programming

• Select a suitable mounting location near the entrance
• Mount the keypad on the wall using screws or tape
• Insert 2x AA batteries
• Set the drive in programming mode
• Enter the 4-digit code and press the desired channel (1, 2, 3)
• The drive confirms pairing
• Repeat for additional codes or channels

Operation

• Touch keypad (illumination activates)
• Enter 4-digit code
• Press channel button
• Drive is activated
• Illumination automatically turns off

Improvements over FCT 3 BS

• BiSecur technology for enhanced security
• Improved key illumination
• Longer battery life
• Robust construction
• Better weather resistance
• Modern design

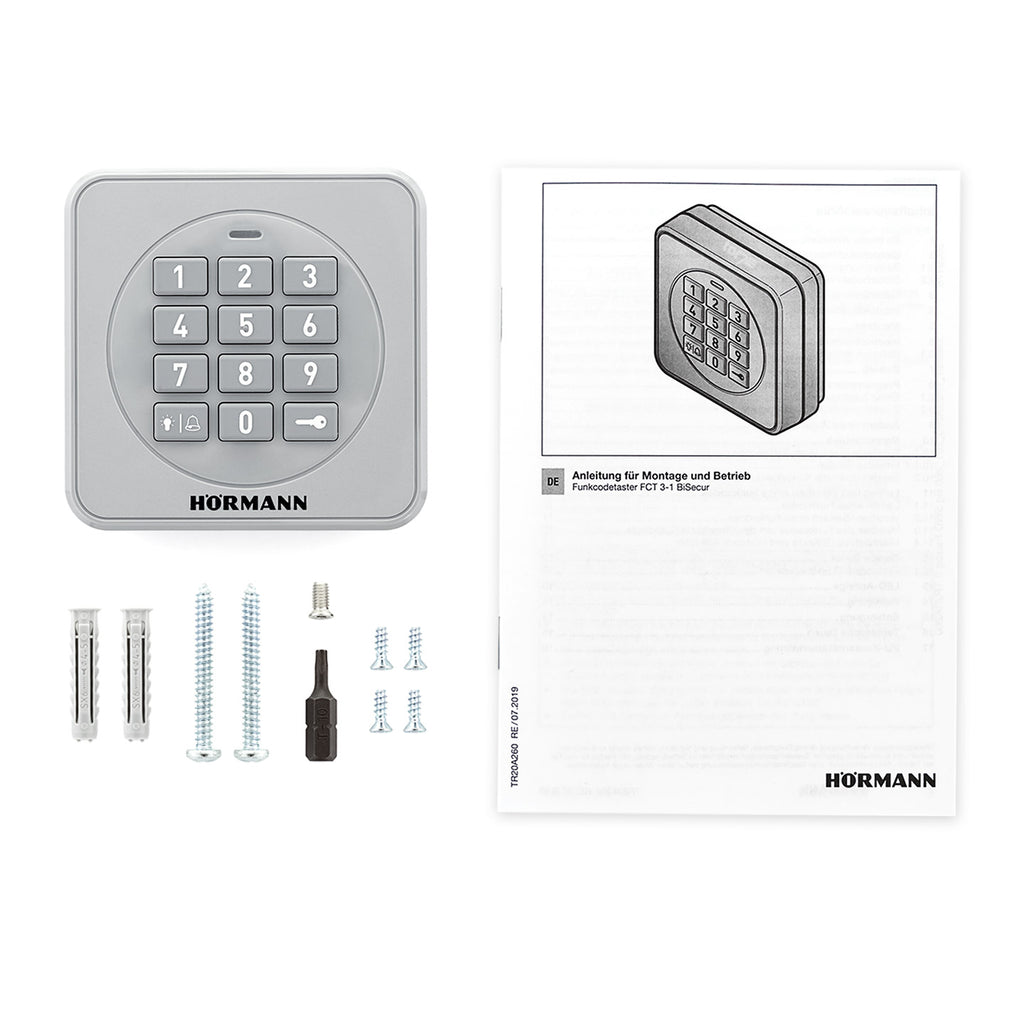

Package Contents

• 1x Hörmann FCT3-1 BS-868 Radio Code Switch
• 2x AA batteries
• Mounting materials (screws & plugs)
• Double-sided tape for alternative mounting
• Comprehensive English manual

Why Choose Hörmann Accessories?

• Optimally designed for Hörmann drives
• Guaranteed compatibility
• German quality – reliable and durable
• Maximum security via BiSecur coding
• Easy installation and programming
• Manufacturer warranty
• Professional support

Upgrade your access system with the Hörmann FCT3-1 BS-868 Radio Code Switch – secure, key
