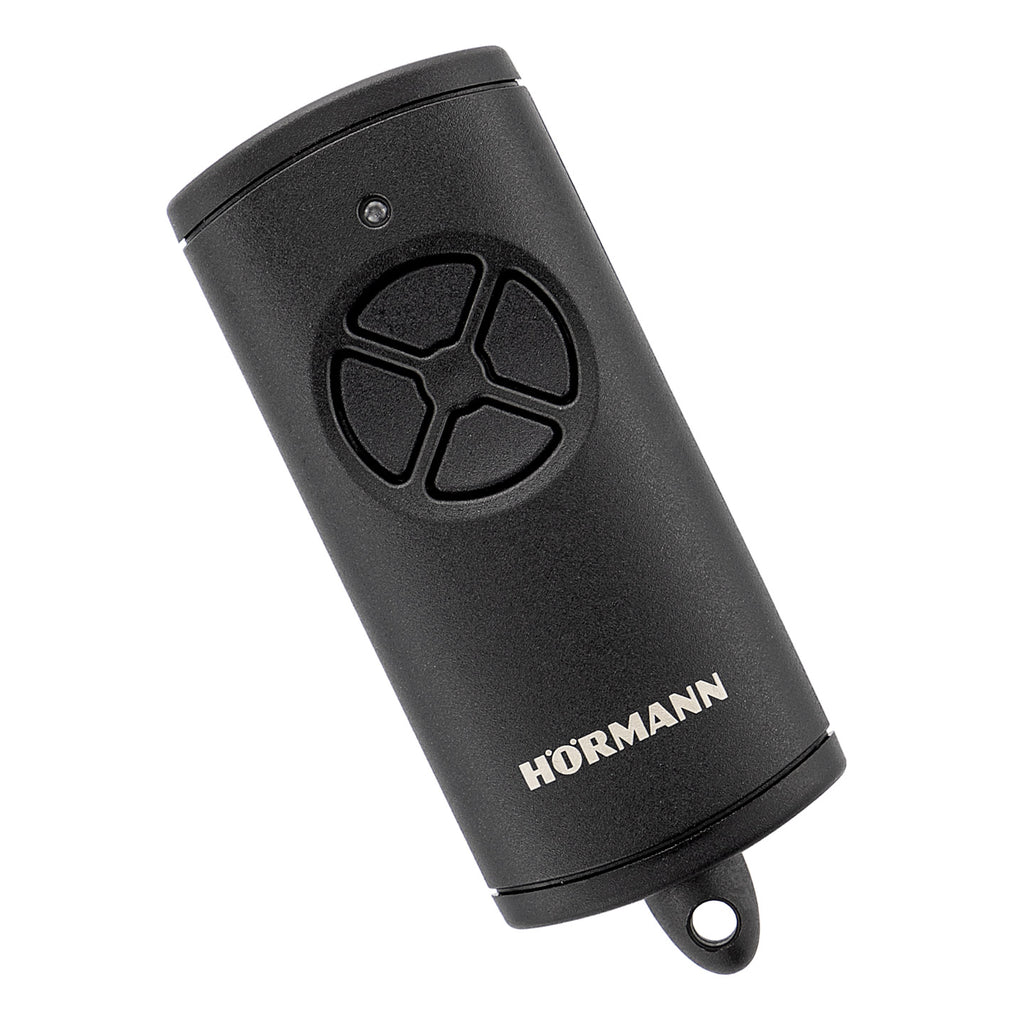

Hörmann hand transmitter HSE 4, BiSecur, structured plastic black

Hörmann Hand Transmitter HSE 4 BiSecur - Premium 4-Channel Remote Control Black Structured

Control up to four different Hörmann drives or functions with the Hörmann HSE 4 BiSecur hand transmitter in black structured finish. This premium 4-channel remote control with BiSecur technology combines high-quality, modern design and maximum flexibility. Perfect for homes with multiple garage doors, access gates or additional functions such as lighting.

BiSecur 868 MHz Technology

The HSE 4 BiSecur uses advanced BiSecur technology:

• Maximum Security - Coded radio transmission on 868 MHz prevents unauthorized access
• Backward Compatible - Works with all Hörmann drives from 2005 onwards
• Interference-Free Operation - Reliable signal transmission without interference
• Long Range - Up to 100 meters (open field)
• Future-Proof - Compatible with all modern and older Hörmann systems

Key Features

• 4 Channels - Control up to four different drives or functions
• Black Structured Surface - High-quality plastic with pleasant grip and fingerprint resistant
• Chrome Caps - Die-cast zinc caps for luxurious, premium appearance
• Compact Format - Easily fits on your keychain or in your pocket
• Battery Powered - Long battery life (several years)
• Easy Programming - Quick pairing with your drives
• Durable - Robust construction for years of use
• Premium Quality - High-quality finish and materials

4-Channel Functionality

The HSE 4 BiSecur offers maximum flexibility with four independent channels:

• Channel 1: For example main garage
• Channel 2: For example second garage or carport
• Channel 3: For example access gate or barrier
• Channel 4: For example lighting, shutters or additional gate
• Each channel can be programmed separately
• All functions controllable from one hand transmitter

Black Structured Design

The HSE 4 BiSecur stands out with its premium appearance:

• Black Structured Surface - Modern, elegant color with structure
• Pleasant Grip - Structured surface for optimal grip
• Fingerprint Resistant - Stays beautiful and clean longer
• Chrome Details - Die-cast zinc caps for luxurious appearance
• Clear Button Marking - Four well-perceptible buttons
• Compact and Light - Easy to carry
• Timeless Design - Suits any car and style

Backward Compatibility

A unique property of BiSecur remote controls:

• Works with Old and New Drives - Compatible with all Hörmann drives from 2005 onwards
• Replaces Old Hand Transmitters - Can replace older 868 MHz hand transmitters
• Future-Proof - Will continue to work after upgrade to new drive
• Note: Old hand transmitters do NOT work with new BiSecur drives

Compatibility

The HSE 4 BiSecur is compatible with:

Hörmann BiSecur Drives

• SupraMatic 4 BiSecur
• ProMatic 4 BiSecur
• RotaMatic BiSecur
• LineaMatic BiSecur
• VersaMatic BiSecur
• PortaMatic BiSecur
• StopMatic BiSecur

Older Hörmann Drives (from 2005)

• SupraMatic series 2 and 3
• ProMatic series 2 and 3
• EcoStar series
• RotaMatic series 1 and 2
• LineaMatic series
• VersaMatic series
• All drives with 868 MHz receiver

With External Receivers

• HET-868 external receiver
• HEI-868 internal receiver
• Suitable for expansion of older systems

Technical Specifications

• Type: 4-channel hand transmitter
• Frequency: 868 MHz BiSecur
• Number of channels: 4 independent channels
• Range: Up to 100 meters (open field)
• Power supply: 1x CR2032 lithium battery (included)
• Battery life: Several years with normal use
• Color: Black structured
• Surface: Structured plastic
• Caps: Chrome-plated die-cast zinc
• Dimensions: Compact format (approx. 70 x 40 x 15 mm)
• Weight: Very light (approx. 30 grams)
• Operating temperature: -20°C to +60°C
• Protection class: Splash-proof
• Barcode: 4511561
• Article number: 4511734

Advantages of 4-Channel Hand Transmitter

• Maximum Flexibility - Control multiple drives from one hand transmitter
• Clear Overview - All functions within reach
• Cost-Effective - One hand transmitter instead of several
• User-Friendly - Clearly marked buttons
• Compact - Despite 4 channels still compact format
• Premium Appearance - High-quality finish with chrome details

Ideal Applications

• Homes with multiple garage doors
• Combination of garage door and access gate
• Garage door, gate and lighting
• Double garage with two doors
• Garage, carport and garden gate
• Business premises with multiple entrances
• Complex access systems
• Replacement of multiple separate hand transmitters

Programming

The HSE 4 BiSecur is easy to program:

1. Set the first drive to programming mode (see drive manual)
2. Press the desired button (1, 2, 3 or 4) on the HSE 4 BiSecur
3. The drive confirms the pairing (LED flashes or beep)
4. Repeat for the other drives and channels
5. All channels are now paired and ready to use

Detailed instructions are included. Programming takes only a few seconds per channel.

Operation

Use is very simple:

• Press button 1, 2, 3 or 4 for the desired function
• The corresponding drive is activated
• Press again to stop
• Press again to close
• Works remotely up to 100 meters
• Immediate response without delay

Security

• BiSecur Coding - Prevents copying and eavesdropping
• Rolling Code - Each time a unique code per channel
• Cannot Be Cloned - Maximum protection against unauthorized access
• Coded Transmission - Secure communication with drive
• Complies with Standards - Meets all European safety requirements
• CE Marking - Certified and approved

Why Choose Hörmann Hand Transmitters?

• Original Hörmann - Guaranteed compatibility and quality
• German Quality - Reliable and durable
• BiSecur Technology - Maximum security
• Backward Compatible - Works with old and new drives
• Premium Finish - High-quality materials and chrome details
• Long Lifespan - Years of worry-free use
• Easy Programming - Paired within seconds
• Professional Support - Hörmann service and support

Maintenance

The HSE 4 BiSecur is virtually maintenance-free:

• Replace battery when range decreases (after several years)
• Clean the housing with a damp cloth
• Protect against extreme temperatures and moisture
• Store in a dry place when not in use
• No special maintenance work required

Battery

• Type: CR2032 lithium battery (3V)
• Included with purchase
• Lifespan: several years with normal use
• Easy to replace
• Available at any supermarket or drugstore

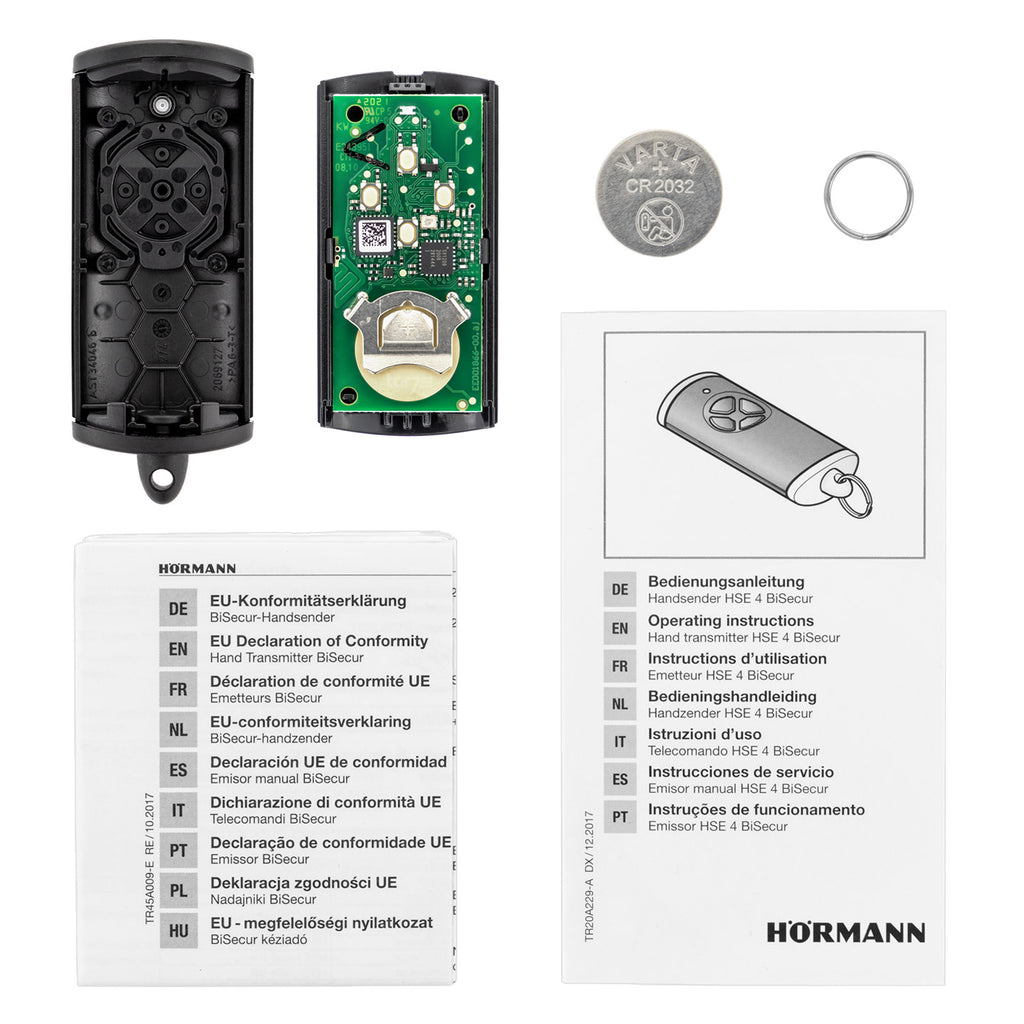

Delivery Contents

• 1x Hörmann HSE 4 BiSecur hand transmitter black structured
• 1x CR2032 lithium battery (installed)

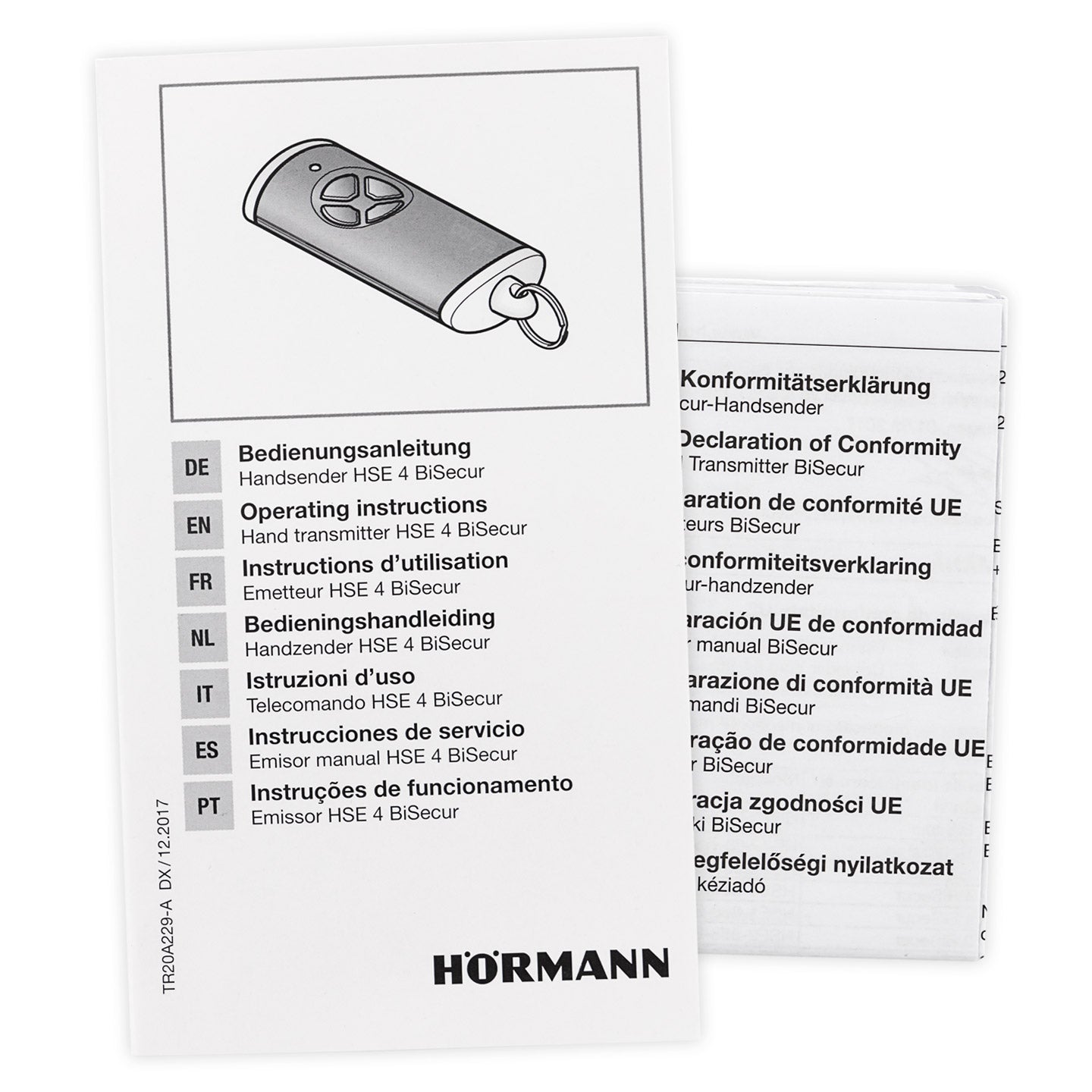

• Manual in Dutch
• Programming instructions for all 4 channels

Difference with Other Hörmann Hand Transmitters

HSE vs HS Series

• HSE: Premium version with high-quality finish and chrome details
• HS: Standard version with good quality

HSE4 vs HSE1/HSE2

• HSE4: 4 channels for maximum flexibility
• HSE2: 2 channels for two doors
• HSE1: 1 channel, compact, simple

Application Examples

Large Home

• Channel 1: Main garage
• Channel 2: Second garage/carport
• Channel 3: Driveway access gate
• Channel 4: Outdoor lighting or garden gate

Business

• Channel 1: Main entrance
• Channel 2: Loading dock
• Channel 3: Underground parking
• Channel 4: Barrier

Combine with Other Hörmann Accessories

Expand your system with:

• Additional HSE 4 hand transmitters for other family members
• Indoor push button for control from the house
• Code keypad for access without hand transmitter
• Key switch for additional security
• External receiver for expansion
• Photocells for additional safety

Warranty and Service

• Hörmann factory warranty
• Fast delivery from stock
• Professional support for programming
• Spare batteries available
• Dutch manual and support

Note When Replacing

Important information when replacing old hand transmitters:

• BiSecur hand transmitters work with all Hörmann drives from 2005 onwards
• Old 868 MHz hand transmitters do NOT work with new BiSecur drives
• Upgrade to BiSecur is always possible and future-proof
• If in doubt: check the type of your drive

Choose the Hörmann HSE 4 BiSecur hand transmitter in black structured finish and enjoy maximum flexibility with premium quality. Control up to 4 drives from one hand transmitter. Compatible with all Hörmann drives from 2005 onwards. Order now and receive quickly!
